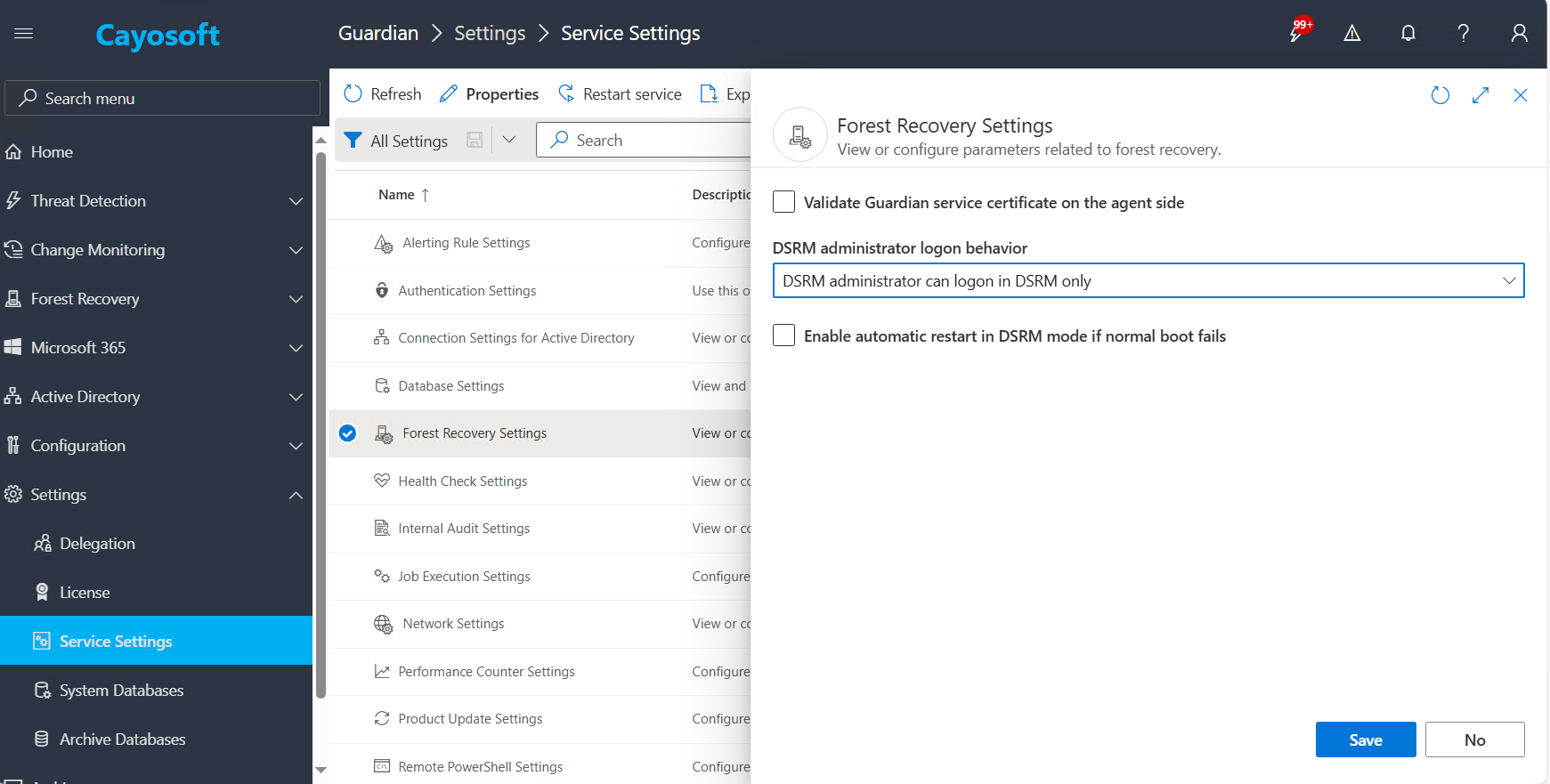

Forest Recovery settings

Validate Guardian service certificate on the agent side

Enable this option to enforce certificate validation for secure communication between the Guardian service and the Forest Recovery Agent. When this option is enabled, the agent validates the service certificate before establishing the connection.

Recommended: Keep this setting enabled to protect the integrity of agent communication during recovery.

Directory connection mode for the Forest Recovery Agent

This setting controls how the Forest Recovery Agent connects to domain controllers when collecting recovery metadata, including domain controller inventory, SYSVOL, DFSR, RID pool, and FSMO role information.

Unlike a simple on/off switch, the connection behavior is selected from one of the following modes:

Choosing a mode

Use LDAPS in environments where:

• Group Policy enforces LDAP channel binding and signing. For more information, see Microsoft ADV190023.
• Plaintext or standard-port LDAP is blocked at the firewall or disabled on the domain controller.
• Organizational policy requires all directory traffic to be TLS-encrypted, with no fallback permitted.

Use LDAPS with fallback in mixed environments where some domain controllers accept secure LDAPS connections and others do not. The agent uses LDAPS where possible and falls back where necessary, recording each fallback in the log.

Use LDAP, the default mode, where signed and sealed LDAP is sufficient.

Certificate handling for LDAPS

When LDAPS is used, the ADSI connection relies on the operating system's certificate validation. For the connection to succeed, the issuing CA chain must be present in the Trusted Root Certification Authorities and Intermediate Certification Authorities stores on the Forest Recovery Agent host.

There is no in-product option to bypass or skip LDAPS certificate validation.

Verifying connection behavior in the Agent log

In LDAPS with fallback mode, when a secure connection cannot be established, the agent records a warning similar to the following:

In LDAPS mode, when fallback is not enabled, a failed secure connection is recorded as an error similar to the following:

Recovery site storage account network access

When Cayosoft Guardian creates an Azure recovery site, it provisions a temporary storage account, also called the recovery site storage account. This storage account is used to stage backups, upload and install agents on the site's virtual machines, and retrieve agent logs.

Public network access to this account is enabled while the site is being deployed or is running, and disabled after the site is shut down.

These settings let you restrict the scope of public access so that the temporary storage account is reachable only from known hosts and networks.

How scoping is applied

When Restrict public network access to recovery site storage accounts is enabled, Guardian still creates the temporary storage account with public access enabled during deployment, but limits the scope to:

• The Guardian host's public IP address, resolved at runtime.
• The IP addresses and ranges configured in IP addresses allowed to access storage accounts.
• The recovery site subnet.
• The compatible VNet subnets configured in Virtual networks allowed to access storage accounts.

When the site is shut down, public access to the storage account is disabled. When the site is started again, public access is re-enabled and the scope restrictions are reapplied.

Considerations

• IP address restrictions may not apply to Azure virtual machines in the same region as the storage account, because those virtual machines can reach storage over the internal Azure network. In this case, use Virtual networks allowed to access storage accounts to grant access by subnet instead.
• Subnets that are incompatible with the storage account, for example, subnets that do not have the required storage service endpoint or are in a different region, are skipped during recovery rather than reported as errors.

Configuring DSRM administrator logon behavior

To troubleshoot recovered domain controllers remotely when NT Directory Services (NTDS) or related services are not functioning, you can allow logon with a Directory Services Restore Mode (DSRM) account. Remote logon with normal Active Directory accounts is not possible in those states.

The DSRM administrator logon behavior offers the following options:

Interactive RDP logon may not work on Windows Server 2016 for the latter two options. The native Windows RDP client may require entering DSRM credentials twice, with the second entry on the remote login screen, and may require using an admin switch.

Automatically boot in DSRM mode on failure

To improve recovery automation, you can configure a recovered server to boot into DSRM automatically if a normal boot fails.

When this option is enabled, Cayosoft Guardian configures the Boot Configuration Data (BCD) before rebooting. Cayosoft Guardian creates a dedicated DSRM boot entry with safeboot dsrepair and sets it as the recovery sequence. If the first boot attempt fails, the system boots into DSRM on the next attempt.
