Cayosoft Administrator URLs and IP address ranges
Network diagram

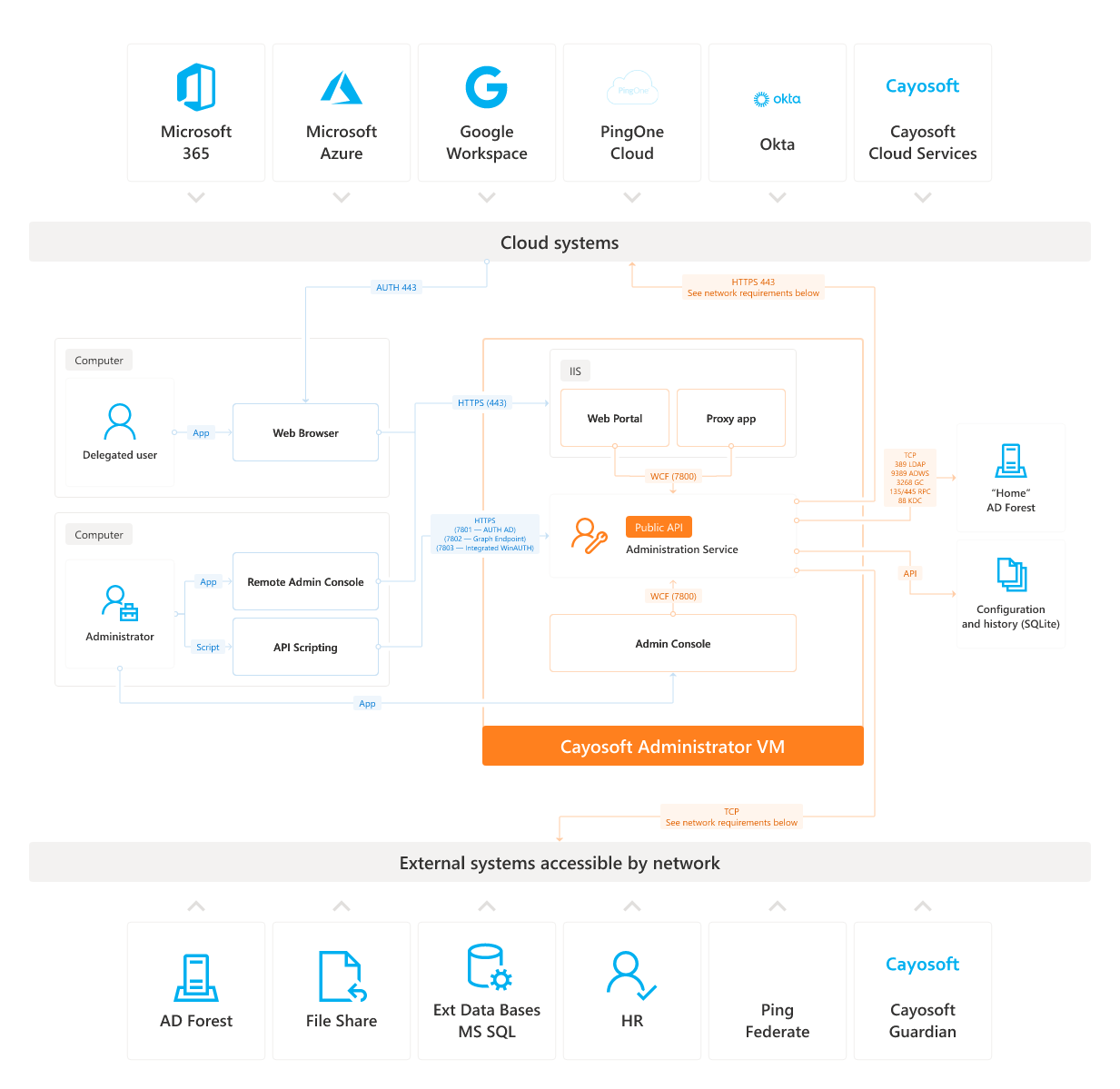

This diagram illustrates the network architecture for Cayosoft Administrator, showing the communication flow between the Cayosoft Administrator Service, Web Portal, Active Directory, Exchange, and cloud services such as Microsoft 365. It outlines the key connection points, ports, and security boundaries involved in supporting hybrid and cloud operations.
NOTE: Cayosoft Administrator Service doesn't use 636 and 3269 SSL ports.
License Server
Review the table below for the list of ports required for Cayosoft License Server:
| Type | Port | Source | Target | Purpose |
|---|---|---|---|---|
| TCP | 443 | Computer where Cayosoft Administrator is installed | Cayosoft License Server | Cayosoft License Server License Validation and Management - HTTPS |
| TCP | 80 | Computer where Cayosoft Administrator is installed | Cayosoft License Server | Cayosoft License Server License Validation and Management - HTTP |
Administration Service
If a firewall separates the Cayosoft Administrator Console or Web Portal and the Cayosoft Administrator Service, the following ports must be opened.
NOTE: Cayosoft Administrator Console requires the 443 port if installed remotely. If the Cayosoft Administrator Service and Console are installed on the same machine, and you use this Console for connection to another remote service, in this case, the 7800 port is required.
| Component | Type | Port | Source | Target | Purpose |
|---|---|---|---|---|---|
| Cayosoft Remote Console | TCP | 443 | Remote console client host | Computer where Cayosoft Administrator is installed | WPC |
|
Publisher Subscriber Replication |
TCP | 7800 |
Replication partner host | Replication partner host | WPC |
| Public API | TCP |
7801 7802 7803 |
Source Public API client | Computer where Cayosoft Administrator is installed | OAuth, Graph, WinAuth |
Web Portal
| Type | Port | Source | Target | Purpose |
|---|---|---|---|---|
| TCP | 443 | Client machine | Computer where Cayosoft Administrator is installed | HTTP Connections |
| TCP | 80 | Client machine | Computer where Cayosoft Administrator is installed | HTTPS |
Learn more in Cayosoft Administrator Web Portal configuration.
Endpoints
Product installation, upgrade and services
| Required/Optional | Service | Endpoints | Notes |
|---|---|---|---|
| Required | License Service | api.telemetry.cayosoft.com |
Cayosoft implements cloud licensing to automatically communicate the license usage data to Cayosoft and allow for seamless experience in your environment. |
| Optional | Telemetry |
|
Optional telemetry data. For additional information, refer to the following article: Optional Diagnostic Data. |
| Optional | Check and download product updates |
|
In-product update to download and apply updates from the cloud. For additional information, refer to the following article: Update product or extension pack from the cloud. |
| Optional | Entra ID sign-in in the Console | cayo-signinredirect.azurewebsites.net |
Only required when signing in the Console with an Entra ID account. |
| Required | Web Portal configuration | *.delivery.mp.microsoft.com |
Installation and maintenance of required dependencies via DISM. |
| Required | PowerShell module installation and upgrade | Refer to the Microsoft article: Required network endpoints | Microsoft. | Automatic upgrade and deployment of PowerShell Gallery modules. |
| Optional | SharePoint client object model (CSOM) Installation and Update | Refer to the Microsoft article: NuGt Server API | Microsoft. | Only required when the Connect to SharePoint Online service setting in the Microsoft 365 extension is enabled. |
Extensions
Active Directory
| Type | Port | Source | Target | Purpose |
|---|---|---|---|---|
| TCP | 389 | Computer where Cayosoft Administrator is installed | Domain Controllers | LDAP Common queries |
| TCP | 3268 | Computer where Cayosoft Administrator is installed | Domain Controllers |
LDAP Global Catalog Search |
| TCP | 9389 | Computer where Cayosoft Administrator is installed | The Active Directory Domain Controller (DC) that is running the Active Directory Web Services (ADWS). | Active Directory Web Service (ADWS) |
| TCP | 135/445 | Computer where Cayosoft Administrator is installed | Domain Controllers | RPC |
| TCP/UDP | 88 | Computer where Cayosoft Administrator is installed | Key Distribution Center (KDC), which is usually running on the Active Directory Domain Controller (DC). | Kerberos Authentication |
Exchange Server
| Type | Port | Source | Target | Purpose |
|---|---|---|---|---|
| TCP | 443 | Computer where Cayosoft Administrator is installed | Exchange Server | HTTPS |
| TCP | 80 | Computer where Cayosoft Administrator is installed | Exchange Server |
PowerShell connections Learn more in: Connect to Exchange servers using remote PowerShell - Microsoft |
| TCP | 5985/5986 | Computer where Cayosoft Administrator is installed | The Exchange Server where the WinRM service is running. |
WinRM (Windows Remote Management)
Learn more in Troubleshooting Cayosoft Administrator Active Directory DC Connection Issues. |
Home folder server or other computer resources
| Type | Port | Source | Target | Purpose |
|---|---|---|---|---|
| TCP | 139 | Computer where Cayosoft Administrator is installed | The remote computer or server where the shared resources are located. | NETBIOS Sessions |
| TCP | 435 | Computer where Cayosoft Administrator is installed | Windows File Servers or SMB/CIFS Shares | File Sharing and Management |
SharePoint Online
For more details please see this Microsoft article: Microsoft 365 URLs and IP address ranges - Microsoft 365 Enterprise | Microsoft Learn.
| Type | Port | Source | Target | Purpose |
|---|---|---|---|---|
| TCP | 443 | Computer where Cayosoft Administrator is installed | For the full list of the SharePoint Online and OneDrive for Business ports and addresses, refer to the following Microsoft article: Office 365 endpoints - SharePoint Online and OneDrive for Business. |
HTTPS |
| TCP | 80 | Computer where Cayosoft Administrator is installed | Initial HTTP Requests |
Microsoft Teams
For more details please see this Microsoft article: Microsoft 365 URLs and IP address ranges - Microsoft 365 Enterprise | Microsoft Learn.
| Type | Port | Source | Target | Purpose |
|---|---|---|---|---|
| TCP | 443 | Computer where Cayosoft Administrator is installed | For the full list of the SharePoint Online and OneDrive for Business ports and addresses, refer to the following Microsoft article: Office 365 endpoints - SharePoint Online and OneDrive for Business. |
HTTPS |
| TCP | 80 | Computer where Cayosoft Administrator is installed | Initial HTTP Requests | TCP |
Okta
Review the following for additional information: Advanced Server Access port requirements | Okta.
Google Apps
Review the following for additional information: Drive and Sites firewall and proxy settings | Google Workspace Admin Help.
Ping
Review the following for additional information: Port requirements | PingFederate.
Microsoft 365 verification\authentication
For detailed information about Microsoft 365 ports and addresses, see the following article: Microsoft 365 URLs and IP address ranges - Microsoft 365 Enterprise | Microsoft Learn.
Workday HR
| Type | Port | Source | Target | Purpose |
|---|---|---|---|---|
| TCP | 443 | Computer where Cayosoft Administrator is installed | Workday HR Server |
HTTPS |
| TCP | 80 | Computer where Cayosoft Administrator is installed | Initial HTTP Requests |
